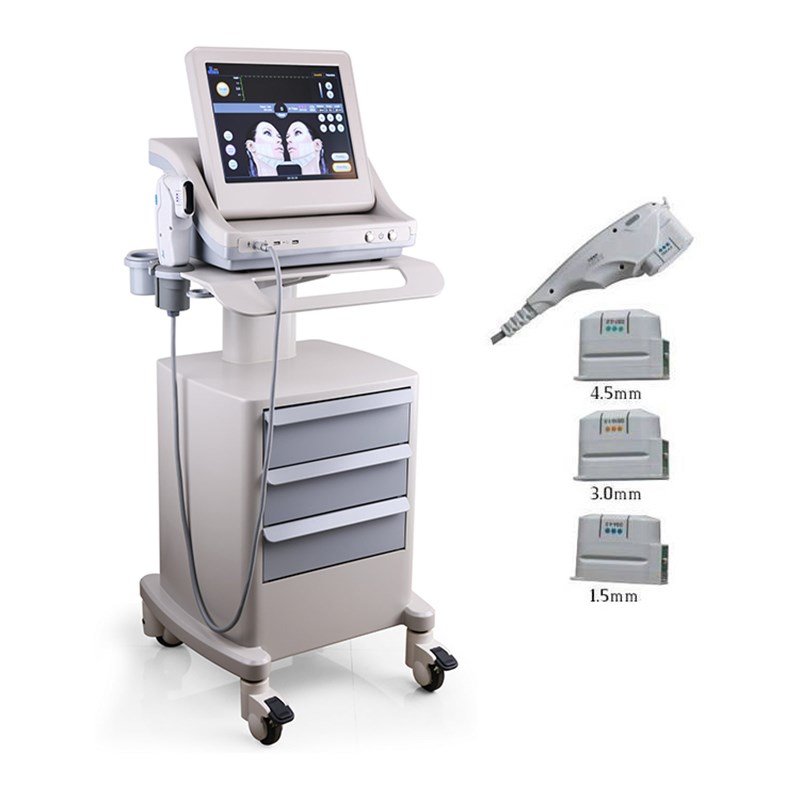

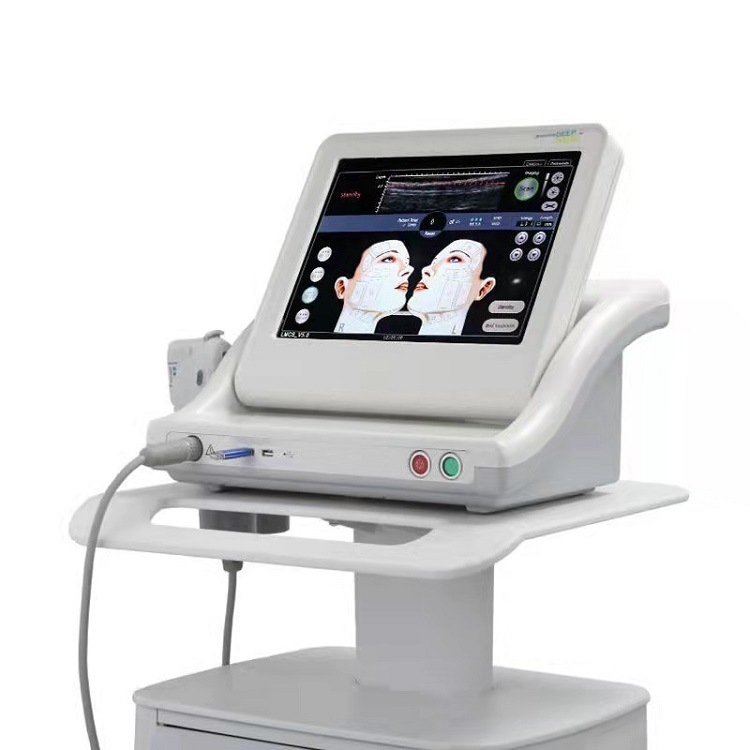

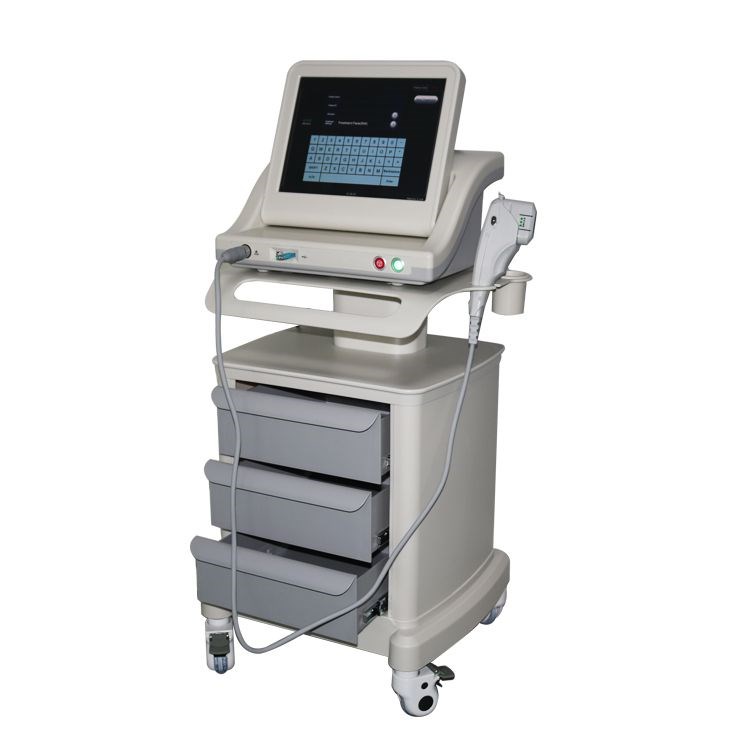

HIFU face lift Machine for Professional Skin Tightening and Anti-Wrinkle

HIFU Treatment Principle

High-intensity focused ultrasound (HIFU) is a medical procedure that applies high-intensity focused ultrasound energy to locally heat and destroy diseased or damaged tissue through ablation. It directly delivers heat energy to skin and subcutaneous tissue that can stimulate and renew the skin’s collagen thus consequently improving the texture and reducing sagging of the skin. It literally achieves the results of a facelift or a body lift without any invasive surgery or injections, moreover, an added bonus of this procedure is that there is no downtime.

This technique can be applied to the face as well as the whole body and also, and it works equally well for people of all skin colors, in contrast to that of lasers and intense pulsed lights.

Using high-energy ultrasound focuses the treatment position, so that the skin tissue creates the thermal, and makes high-speed friction cells to stimulate collagen. Such heat effect will not hurt the epidermis, because the HIFU treatment is fast and direct access to the treatment site within 0-0.5 seconds, without touching the surrounding tissue and can be passed directly to the Superficial Muscular Aponeurotic System (SMAS), so it can be done firm skin while pulling the muscle layer, thin face up to the progressive effect.

---

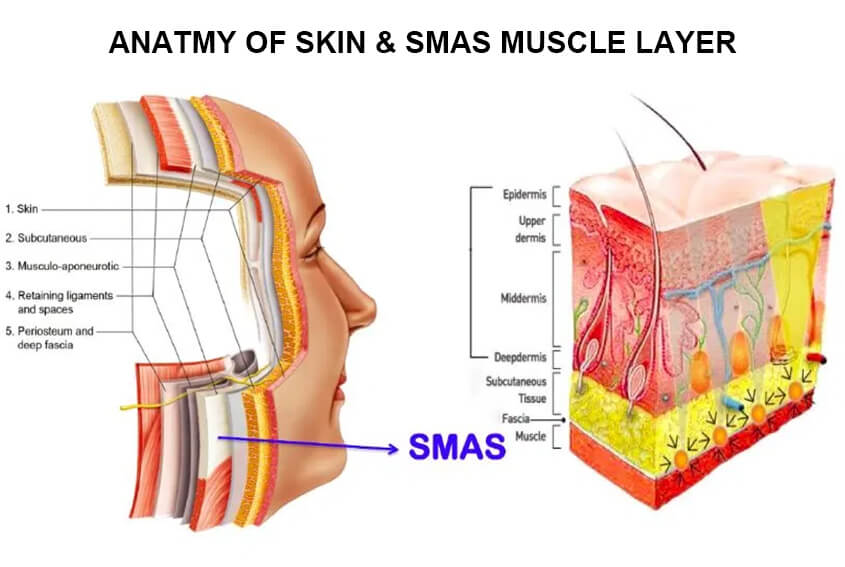

What is SMAS?

SMAS is short for Superficial Muscular Aponeurotic System, which refers to deep tissues widely covered under the dermis, which connects fat and a layer of connective tissue-thin film on facial superficial muscle, which extends to facial bones. SMAS is firmly connected with skin (epidermis and derma), and subcutaneous tissues (fat). These three layers of structures constitute the facial profile and support the integrity of the derma, muscles, and bones.

With its unique high energy-focused ultrasound, HIFU will reach the SMAS layer and improve SMAS anathema lifting. It not only solves problems of facial sagging and relaxation but also activates subcutaneous collagen reorganization and regeneration. Therefore, facial problems such as coarse pores, wrinkles, and elasticity degeneration will be improved at large.

Application:

Suitable for people over 30, the skin just started to enter aging, a single therapy can help accelerate the active cells, and the HIFU treatment effect is more significant and long-lasting.

Suitable for people over 40, the skin issues have appeared sagging and loose, we recommend using different technologies of treatment to ensure effective retard aging and significantly improve the skin problem.

1.Remove wrinkles around the forehead, eyes, mouth, etc.

2.Lifting and tightening both cheeks and skin.

3.Improving skin elasticity and shaping contour.

4.Improving jawline, reducing “marionette lines”.

5.Tightening the skin tissue on the forehead, lifting the eyebrow lines.

6.Improving skin complexion, making the skin delicate and bright.

7.Match with injecting beauty like Hyaluronic acid, collagen, to resolve more aging problems.

8.Removing neck wrinkles, protecting neck aging.

9.Stretch marks removal, build your charming body line.

10.Cellulite removal.

---

Treatment Position

Forehead

Eyes

Cheekbones

Apple muscle

Cheeks

Chin and neck such as sagging skin aging phenomenon

---

Parameters:

Energy type	HIFU (high-intensity focused ultrasound)
Screen	15” color touch screen
Power	0.1-4.0J/cm2
Treatment head	1.5mm /3.0mm /4.5mm /(7.0mm /13mm optional)
Treatment interval	1-4(0.1mm step)
Frequency	4/7 Mhz
Machine Weight	6KG
Voltage	AC110V / 220V 50/60Hz

---

Technology

Technology Advantages Of HIFU Face Lifting Machine:

Best temperature guarantee

The temperature of HIFU is about 65℃- 70℃, which is the most appropriate temperature for collagen’s effective degeneration. With high-intensity focused ultrasound, there is no need to heat the skin, which won’t hurt the skin either.

Most accurate depth

The energy of HIFU can be accurately focused on a certain depth of tissue that has no influence on the skin surface. With ideal treatment results, it can better protect the skin.

Precise and reliant technology

It adopts the most accurate patented “Positioning indicator line”, which can not only accurately position energy points but is also controllable. The treatment is safe and more comprehensive.

Safe, non-invasive treatment

More than 100 thousand people have used HIFU. According to expert Li Qiutao, each treatment needs only 40 minutes. No pain feeling is found during the treatment process. No recovery period is needed and treatment effects are evident and gradual.

A variety of treatment probes for different positions

Based on different skin textures and depth, different treatment probes can be chosen for different positions, such as facial part, neck, eyes area, abdomen, and arms.

---

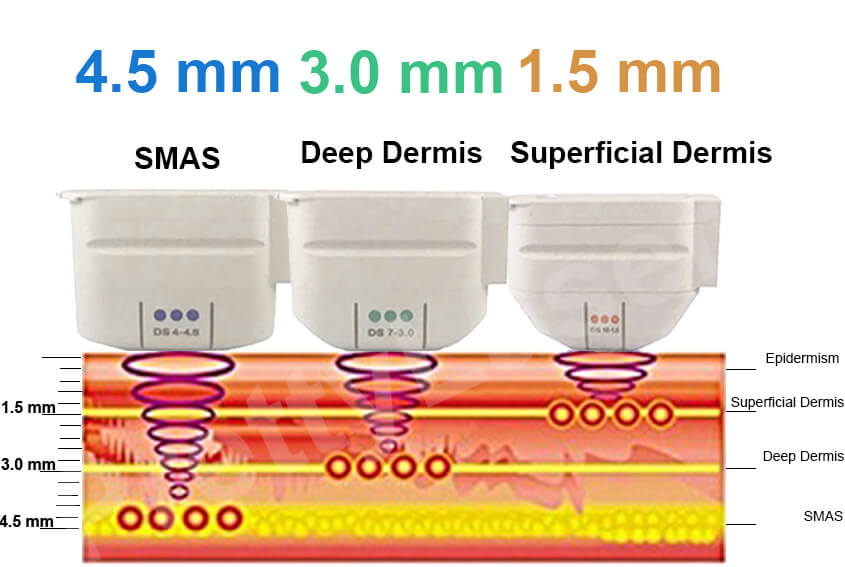

HIFU Cartridge

Face-lift HIFU cartridge 1.5mm

1.5mm treatment probe —HIFU energy penetration depth 1.5mm, HIFU energy penetrates to the epidermis layer, 1.5mm cartridge is applied to thinner tissue, such as eye zone.

HIFU treatment for face – HIFU cartridge 3.0mm

3.0mm treatment probe – HIFU energy penetration depth 3.0mm, HIFU energy penetrates to the dermis layer, 3.0mm cartridge applied to deeper tissue such as chin, chest.

Face-lift HIFU cartridge 4.5mm

4.5mm treatment probe — HIFU energy penetration depth 4.5mm, HIFU energy penetrates to the SMAS layer, 4.5mm cartridge applied to thicker tissue such as cheeks, neck.

Cellulite Removal –  cartridge 7mm/13mm for body fat layer

7mm/ 13mm treatment probe – High intensity focused ultrasound target at the fat of 13mm(depth of penetration), heating up the fat tissue, combined with high energy and good penetration to resolve the fat, during the treatment, the triglyceride and fatty acid excrete by the process of metabolism, and the vessel and nerves will not be damaged.

---

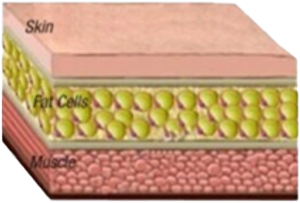

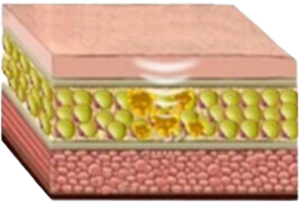

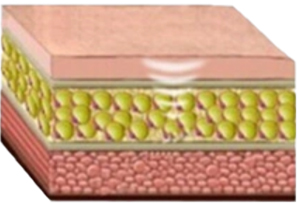

HIFU Fat Removal Treatment Principle

Apply high intensity focused ultrasound, generate focused energy, and go deeper into the cellulite to break cellulite. it is an invasive, impressive, and long- last effective treatment to reduce fat, especially for the abdomen and thigh.

High-intensity focused ultrasound targets the fat of 13mm(depth of penetration), heating up the fat tissue, combined with high energy and good penetration to resolve the fat, during the treatment, the triglyceride and fatty acids excreted by the process of metabolism, and the vessel and nerves will not be damaged.

---

Treatment Procedures of HIFU

1.Face cleaning.

2.Position the targeted treatment area with a marking pen.

3.Apply evenly gel on the face with 2-3mm.

4.The energy test shall begin with a low level and with a targeted point; consult patients’ feelings, if they feel light, then increase the energy level till the patient can bear it, which will be the best treatment parameter.

5.Carry out treatment based on the positioning scheme.

6.Cleaning after the operation.

7.The device is removed.

The skin may be slightly red, which will disappear after a while.

---

What is HIFU treatment for face side effects?

HIFU is considered very safe if performed by a trained and qualified professional.

The best part about this treatment is that you’re able to resume your normal activities immediately after you leave the provider’s office. Some slight redness or swelling may occur, but it should subside quickly. A light tingling sensation in the treated area may persist for a few weeks.

Rarely, you may experience temporary numbness or bruising, but these side effects usually go away after a few days.

---

What Are The Differences Between HIFU And RF(Radiofrequency)?

Although HIFU and RF serve the same intention, these two methods are quite different, and using one or the other will depend hugely on the results that you want to achieve. We’ve listed the main differentiating points to clarify the process and help you choose the aesthetic treatment device that fits your needs best.

HIFU Skin Tightening:

It’s a new type of non-surgical, non-invasive, safe, and effective method that uses ultrasound technology and the body’s own natural healing process to tighten and tone sagging skin on your face.

HIFU treatment uses high-intensity focused ultrasound waves. Their high concentration enables the technology to get to a specific point below the surface of the skin where it reaches the SMAS layer (muscle layer). Working deep below the surface stimulates the growth of collagen without harming the outer layer of skin. This results in long-lasting firming, and tightening of the skin, after just one treatment.

Radiofrequency(RF) Skin Tightening:

RF skin tightening relies on devices that use radiofrequency waves to convert energy from radio to heat. The energy produced this way heats the skin’s deeper layers to stimulate collagen remodeling response. Radiofrequency’s low frequency is closely monitored to ensure that targeted tissues reach the optimal temperature to induce new collagen production and cell regeneration without overheating. Therefore, this way it can safely penetrate a deeper level of the skin helping to improve its tone and structure.

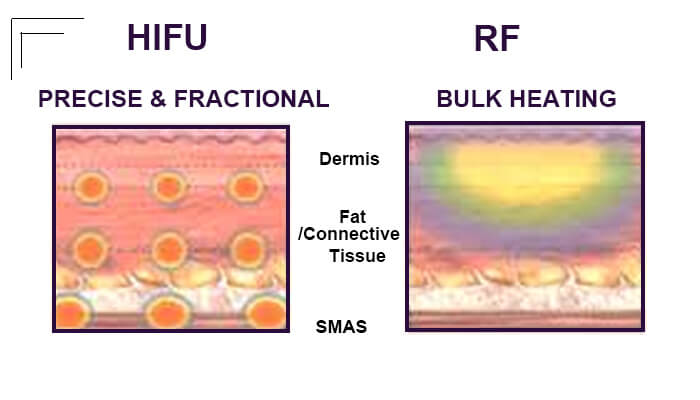

Main Differences Between HIFU And RF:

The first and most obvious way in which they differ is that they use different technologies to heat up the deep skin tissues. HIFU delivers more precise and more intense fractional ultrasound energy while RF is based on a bulk heating strategy.

Second, each technology works in different, but partially overlapping skin layers. HIFU goes much deeper into and beyond the dermis, being able to reach the SMAS layer. RF, on the other hand, will not go as deep as HIFU. It focuses on the epidermal layers and does not go beyond the deep dermis.

Third, while HIFU is generally performed as a single treatment RF may require several sessions. The exact frequency of either of those treatments will depend on the type of device used and your skin conditions such as its current elasticity or your genetic heritage.

Fourth, for HIFU facial treatment, we usually need 1 treatment for every patient in 1 year. The second treatment could be taken after 3 or 6 months for heavy wrinkles.

Five, using ultrasound energy in cosmetic procedures is a relatively new practice. So in terms of aesthetic facial rejuvenation, RF has been around much longer.

---

How To Choose Between HIFU And RF?

As we age our face starts to exhibit a mix of sagging, wrinkling, and sinking. Although each person’s aging style is always unique and should always be addressed individually the following guide explains how different treatments may be more suitable for different types of issues.

Skin Lifting And Increase Skin Elasticity

If your main problem is sagging and your ultimate goal is the “lifting” effect it might be a better idea for you to go for HIFU. The depth of its tissue tightening will allow for more prominent results. Thus, HIFU will be the best choice for tightening loose skin around the jowls, improving the appearance of a double chin, or “lifting” the brows.

Skin Tightening For Delicate Areas Such As Lower And Upper Eyelids

RF being a less intensive method that penetrates tissues not as deep as HIFU can be a better choice for addressing volume loss or treating delicate areas such as lower and upper eyelids. Thus, if you have no or limited skin laxity, but are losing facial volume you may opt for the RF. It will tighten the skin but also create the effect of more volume especially in the area around the mouth.



Both HIFU and RF boost collagen production and accelerate skin tissue remodeling. Thus, they’re both effective in treating wrinkles and fine lines. The best method for treating the signs of skin degeneration will thus depend on the extent of your skin aging and the area you want to treat. For this reason, deciding on any treatment type you should always consult a specialist who can professionally assess your facial anatomy and your skin laxity. And only after the physical examination, a specific treatment recommendation can be made.
